CROSS-COUNTY SKIING
INTRODUCTION AND MOTIVATION
Analysis of the technique with PC application (task T2A): field trials have been carried out, both in outdoor conditions (Candachú, Belagua and Baqueira-Beret).

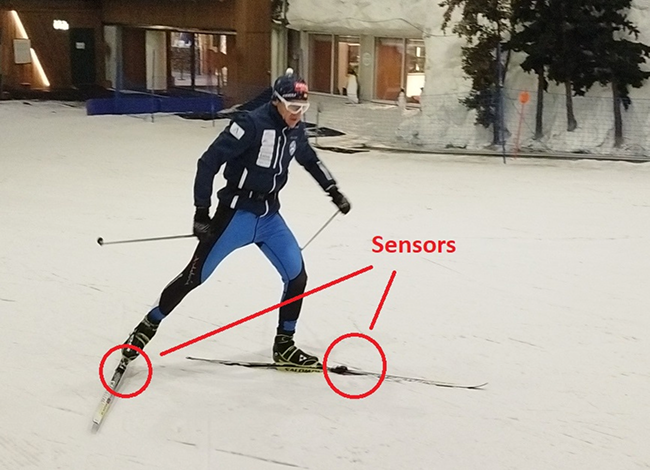

DEVELOPED PROTOTYPE
RESULTS AND CONCLUSIONS
The data provided by the inertial units placed on each of the skis and the videos made during the tests have been synchronized using the phyton application developed. Thanks to this analysis, it has been possible to create a database with the different climbing techniques in cross-country skiing and ski mountaineering for subsequent processing using artificial intelligence techniques. The following figure shows some of the results in the left asymmetric raise technique.

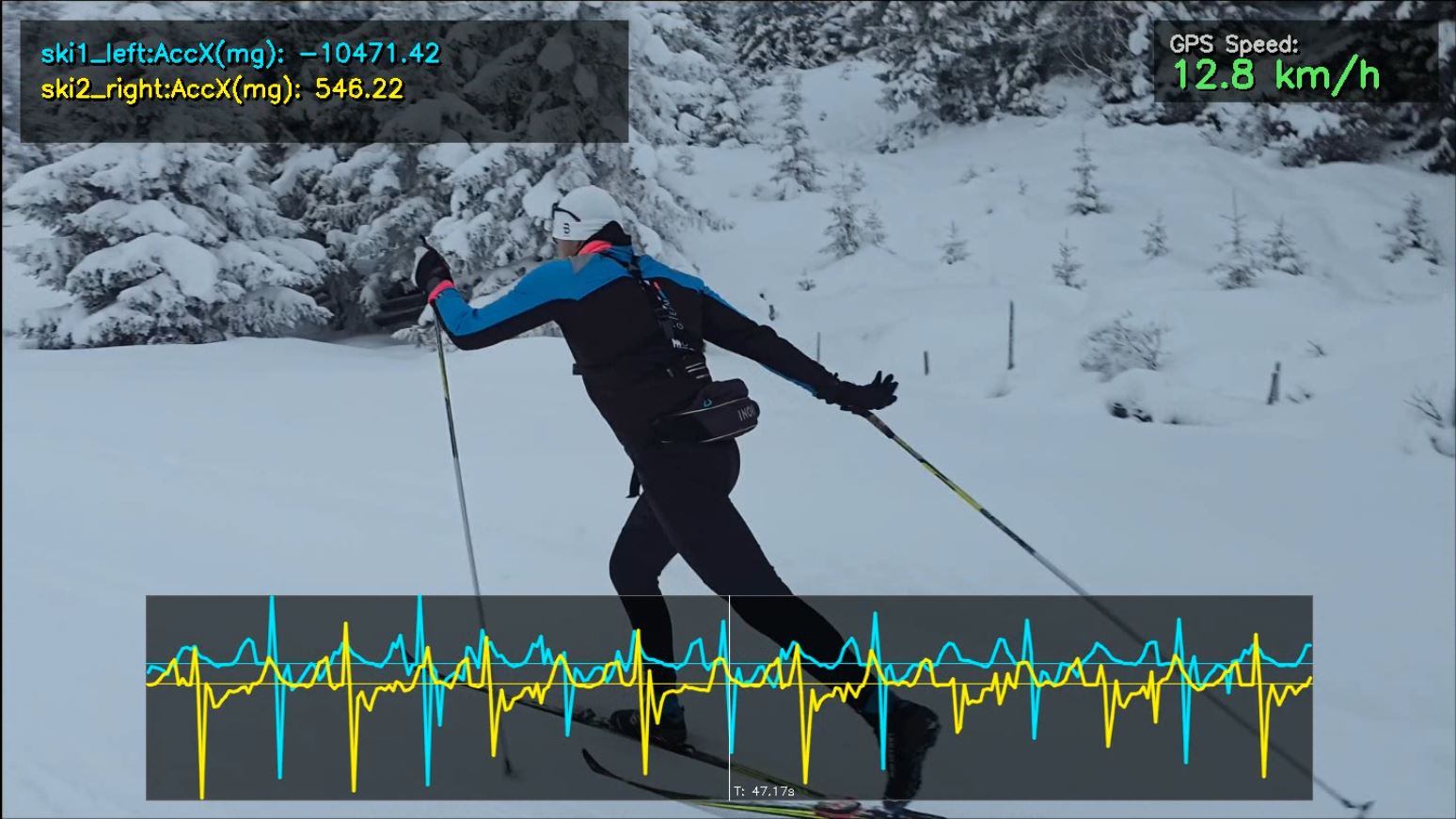

Example of video synchronization and inertial values for cross-country ski analysis for its analysis in left asymmetric uphill technique.
Implementation of the technique recognition algorithm (task T2A): a first technique classification engine based on machine learning has been developed that allows classifying the technique of climbing cross-country skiing in skating style, with a success rate of 94% in these first studies, which is very promising to continue with a larger number of trials and subjects. The previous Figure shows the results obtained using a concordance matrix.
Concordance matrix between the real technique and the one predicted by a classification algorithm based on artificial intelligence.
PEOPLE AND INSTITUTIONS INVOLVED
Isidoro Ruiz-García1
Ismael Navarro-Marchal2
Juan A. Moreno-Pérez1
P. Lorenzo Uhrich3
Alberto J. Palma1
Pablo J. Gómez-López2
Miguel A. Carvajal1
1 ECsens, Department of Electronics and Computer Technology, Sport and Health University Research Institute (iMUDS-UGR), Research Centre for Information and Communications Technologies (CITIC-UGR), University of Granada, 18071 Granada, Spain.
2 SkiingLab, iMUDS, Department of Physical and sport education, Sport and Health University Research Institute (iMUDS-UGR), University of Granada, 18007 Granada, Spain.
3Kustom Skis S.L., Calle Pérez Ayuso, 9, 28002 Madrid, Spain
This work was partly supported by Consejo Superior de Deportes through projects Sensor for Sport Monitoring and Sensor Sport Lab, “Redes de Investigación en Ciencias del Deporte” years 2021 and 2022, and European Regional Development Funds (ERDF).
Thanks also to Kustom Skis for allowing the prototype ski manufacturing at their facility.
